To help you select the best water pump for your needs, we provide two comparison charts for our piston pumps.

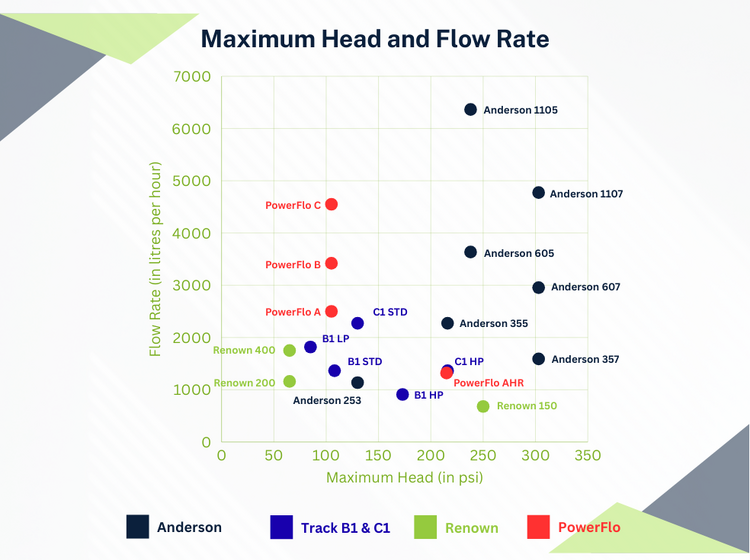

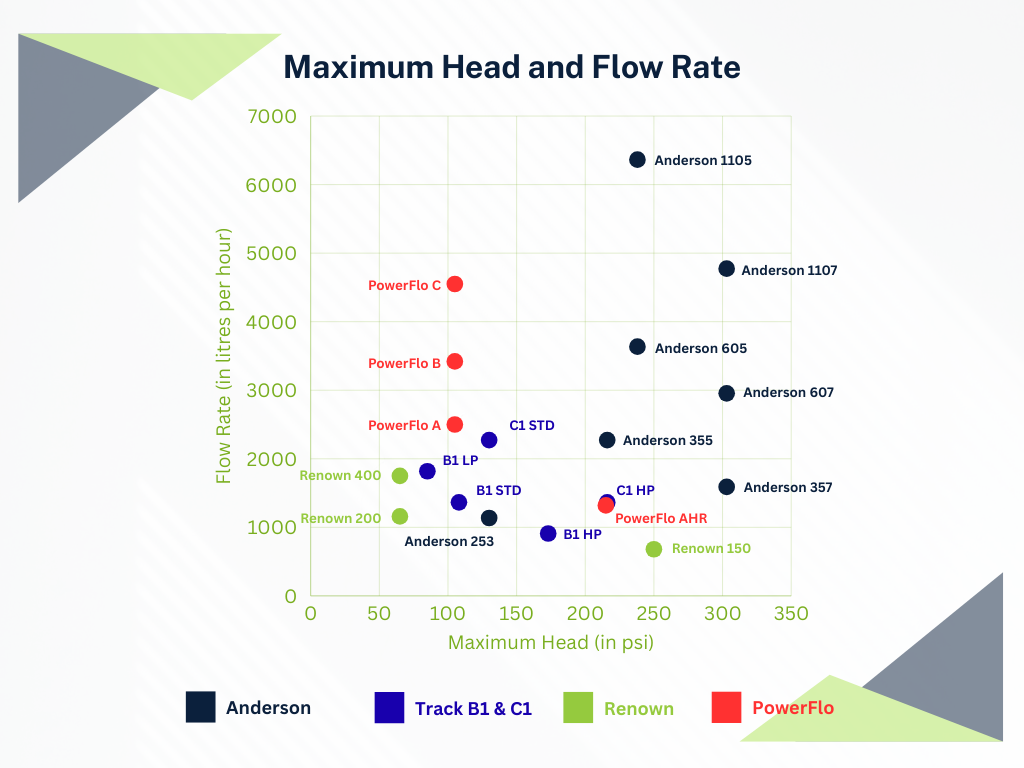

The first chart presents the maximum flow rate and maximum pressure for each water pump. Flow rates are measured in litres per hour. Pressure is indicated in psi. Vertical lift is shown in metres.

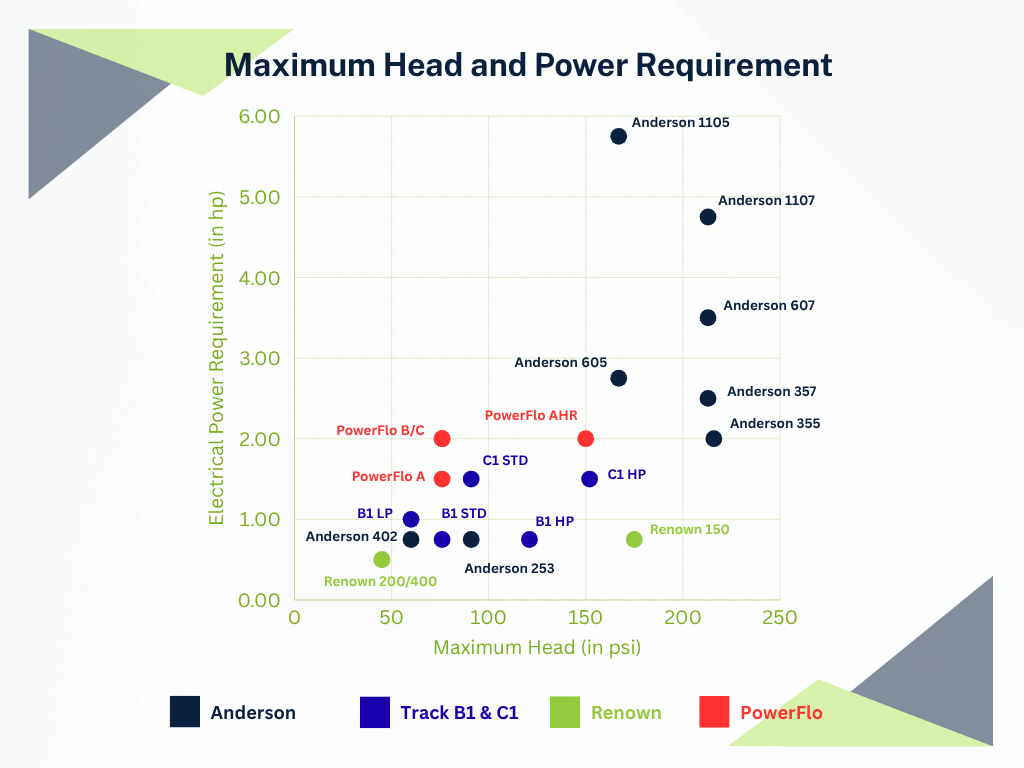

The second chart details the maximum pressure and the electrical power required to achieve that pressure. Power requirements are expressed in horsepower (HP). Pressure is again shown in psi. Vertical lift is given in meters. All of our pumps are designed to operate at an output of 1,450 RPM.

If you plan to use a petrol or diesel motor, triple the power indicated on the chart. You will also need to adjust the RPM to match the 1,450 RPM that the pumps are designed to handle. This typically requires a 2:1 reduction gearbox. Most petrol or diesel engines run at 3,000 to 4,000 RPM.

We don’t recommend directly mounting a petrol or diesel motor. These engines produce significant vibrations that can adversely affect the pump's lifespan.

If you have any questions or need further assistance, feel free to contact us at 03 3844 161 or email us at pumps@trackind.co.nz.
