Windmill & Pumps

Track Windmills use wind energy to pump water efficiently from sources such as bores, creeks, or aquifers. As the wind turns the rotor, it powers a mechanical linkage that drives the pump—no electricity or fuel required.

We pair our windmills with robust windmill pumps in 1¾", 2", or 2½" sizes to suit different flow and depth requirements. This setup offers a reliable, low-maintenance solution for water delivery in remote or off-grid locations.

Track Windmill systems are ideal for:

• Rural properties
• Agricultural operations
• Sustainable water extraction in windy regions

Environmentally friendly and cost-effective, these systems are a proven choice where conventional power isn't available or practical.

Specifications

Windmill:

• Galvanised steel frame, supports, blades, tail, rod, and pullout arm
• Cast iron centre wheel, pivot block, link, pulley, and G casting, PA 10 undercoated, finished red
• Bearings: nylon on main shaft, SKF ball racers on pivot block, and eccentric link
• Removable stain pipe assembly with easy access to pivot block bearing, red powder coat finish

Pump:

• Pump sizes available:

1. L 170 1^3/4"   1" x ^3/4" BSP
2. L 176 2"        1" x 1" BSP
3. L 174 2^1/2"   1^1/4" x 1^1/4 BSP

• Bronze body with frost plug
• Brass glandless top
• Brass and bronze internals

Things to consider:

• Maximum suction: 7.5m
• Water supply should be sufficient to maintain a constant level in the well when the windmill is running at maximum speed
• Most efficient when pumping into a reservoir then gravity fed
• Plan for days when there is no wind

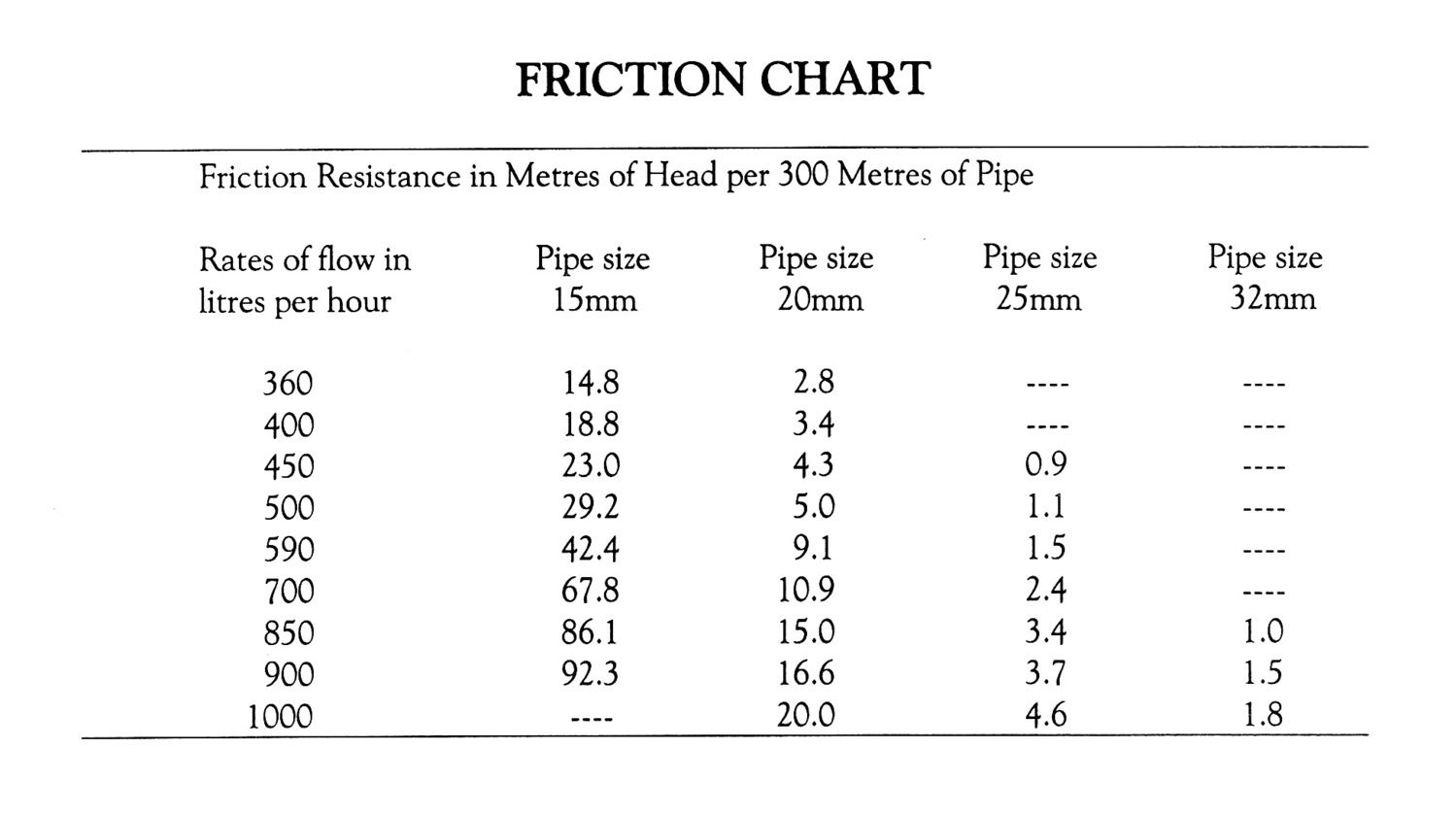

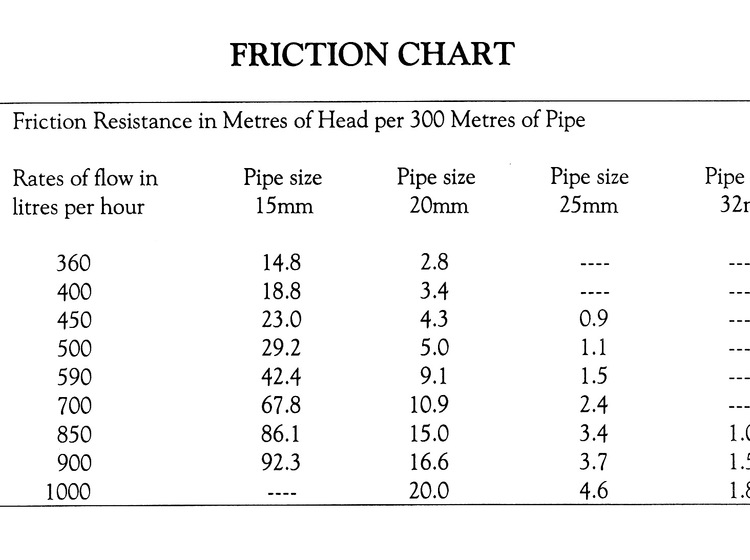

• The internal pipe size from the pump to the reservoir should be no less than 25mm
• Windmill should be set clear of trees and buildings
• Can be set up directly above the bore or on a side draft
• Frost protection: the pump can be set up below ground in a pit, or covered or protected in another way

Note:

If the water level is between 7.5m and 31m, a Deepwell pump is required with the specification as follows:

• K 47 cast iron compensating head with glandless top
• L 103 deep well cylinder
• For a deep well application, you will need to set up the windmill and pump directly above your bore

For more information on price and availability, contact your local agent or get in touch with us.

Not sure which pump is the best fit for you? No worries! Check out our pump comparison page here.
